Making Operations Visible: The Power of Visual Management in Manufacturing

Imagine walking onto a manufacturing floor where you instantly know:

What’s running on time (and what’s behind)
What equipment is down for maintenance
How much inventory is available at each station
Where safety risks or quality alerts exist

No need to ask. No need to dig through spreadsheets. That’s visual management – using visual cues to share information, reinforce standards, and highlight abnormal conditions.

In today’s fast-paced production environments, real-time visibility isn’t a luxury – it’s a requirement.

What Is Visual Management?

Visual management is the use of signals, displays, and controls to communicate critical information at a glance. It turns data into visible cues, enabling faster, clearer decision-making without verbal instructions.

Examples of visual management tools in manufacturing include:

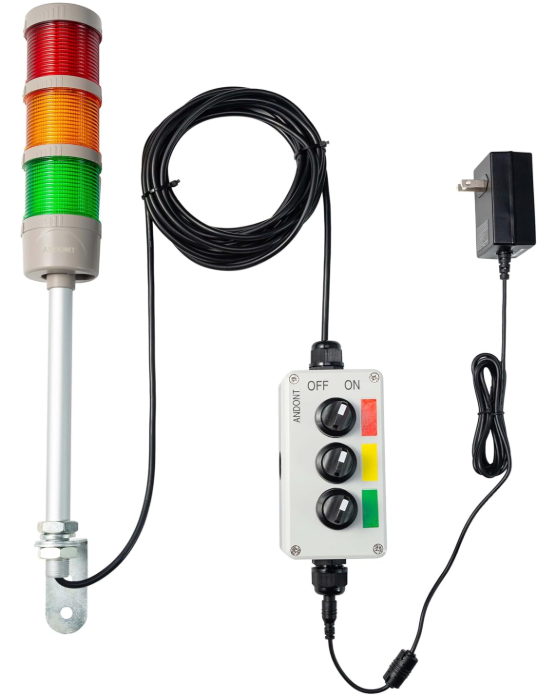

Andon lights to signal machine or operator status

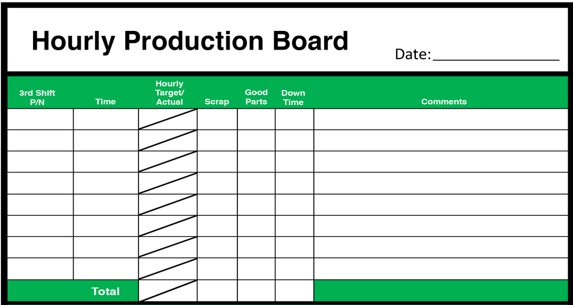

Hour-by-hour boards to track production vs. plan

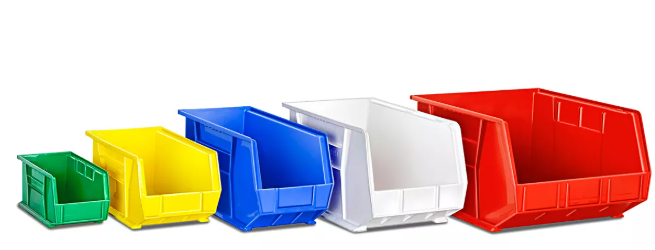

Color-coded bins and labels for inventory control

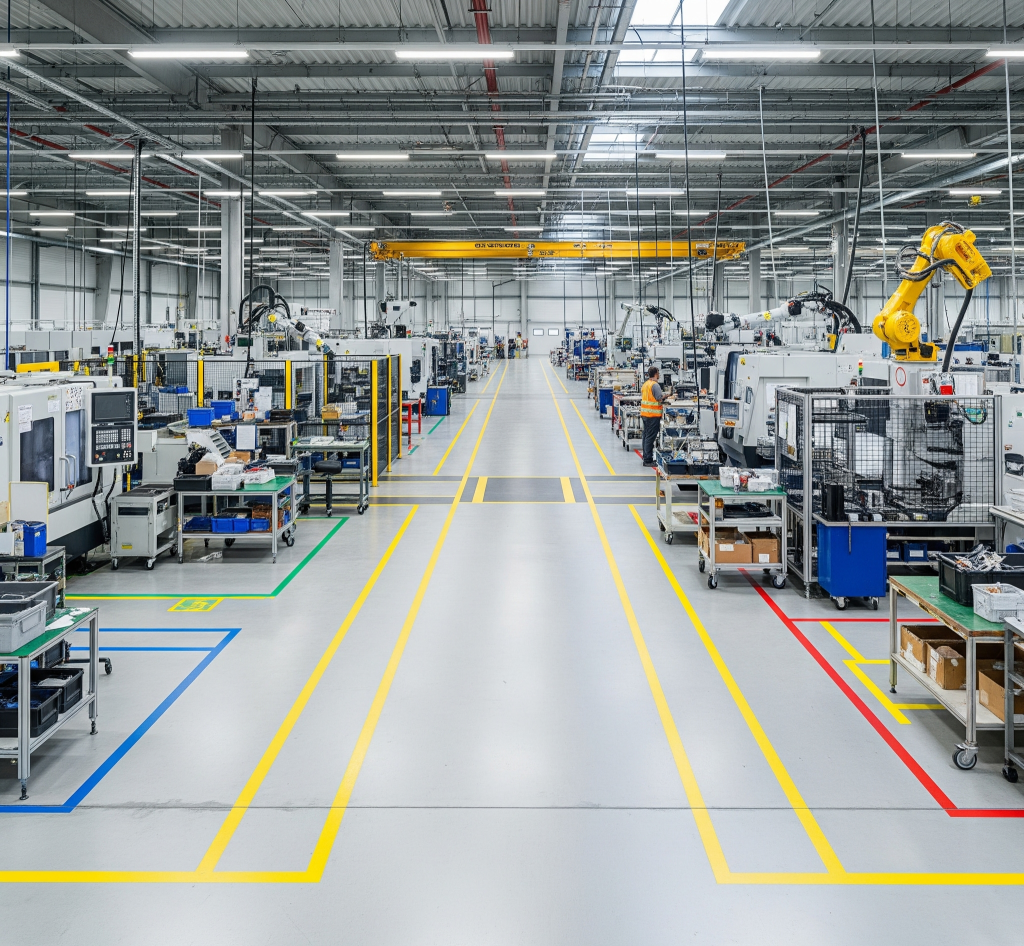

Floor markings for material flow and safe zones

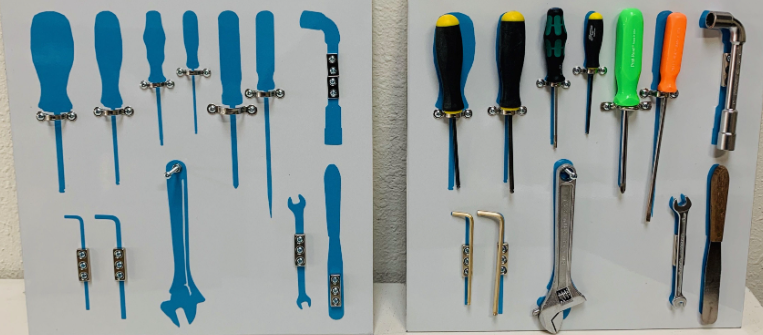

Shadow boards for tool organization

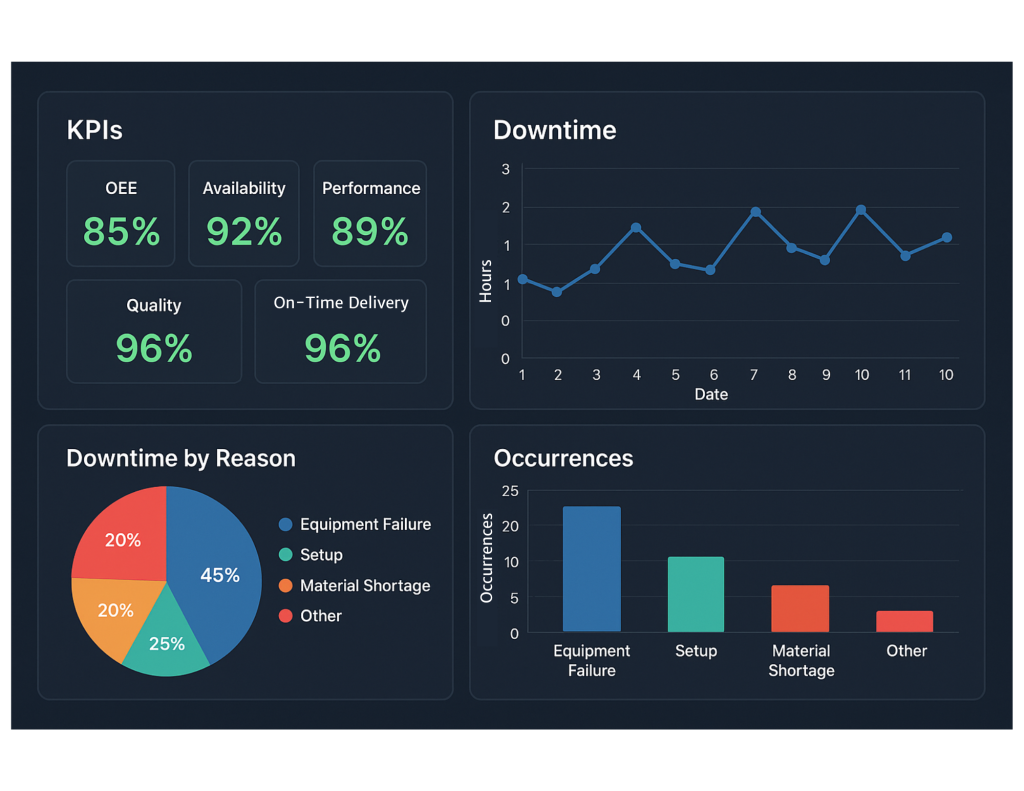

Digital dashboards for KPIs and downtime tracking

The goal? Make the current state obvious – and make problems visible so they can’t be ignored.

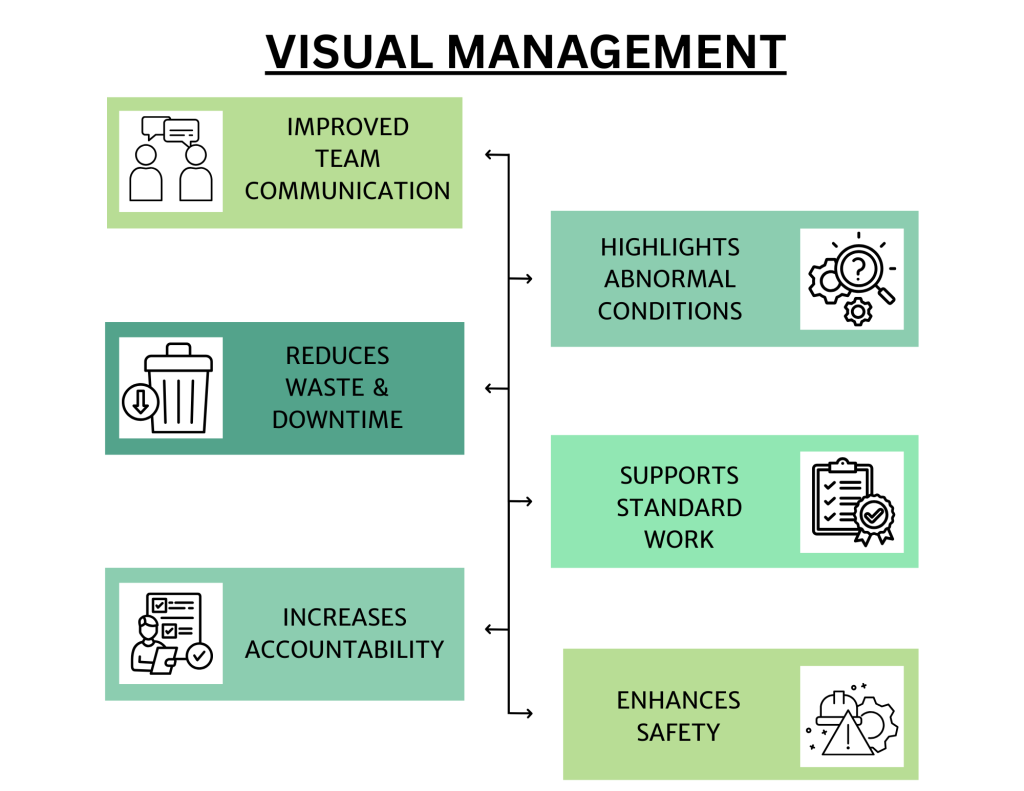

Why Visual Management Matters in Manufacturing

1. Improves Communication Across Teams
Operators, supervisors, maintenance, and management all see the same data in real time. This reduces miscommunication and improves alignment.

2. Highlights Abnormal Conditions
Visual cues immediately reveal issues – like late production, missing parts, or an equipment fault – so corrective actions can start faster.

3. Reduces Waste and Downtime
By keeping workstations organized and making tools/materials easy to find, visual management cuts motion waste, search time, and errors.

4. Supports Standard Work
Clear visual standards help operators follow processes more consistently – and make deviations easier to spot and address.

5. Increases Accountability
When everyone can see performance metrics and expectations (like hourly production targets), ownership becomes part of the culture.

6. Enhances Safety
Visual cues – from PPE signs to hazard zones – help reinforce safe behavior and prevent incidents.

Types of Visual Management Tools

Visual management ranges from simple low-tech tools to advanced digital systems. Here are some common categories:

1. Visual Displays

Whiteboards
Digital monitors with KPIs
Production tracking boards
Maintenance schedules

2. Visual Controls

Color-coded floor markings
Kanban cards and pull signals
Tool shadow boards
FIFO lanes and inventory status labels

3. Visual Signals

Andon lights
Stack lights on machines
Warning signs and alerts
Status indicators for quality holds

4. Visual Standards

Work instructions with visuals
Labeling systems
Layouts and zone identifiers
Poka-yoke devices (error-proofing cues)

How to Implement Visual Management

Start With a Walkthrough
Identify areas of confusion, bottlenecks, or frequent miscommunication. Ask: What’s hard to see? What’s unclear?
Prioritize by Impact
Begin with critical processes – production tracking, inventory flow, safety zones – where improved visibility will yield quick wins.
Involve the Team
Co-create visual solutions with operators. The best ideas often come from those who live the process every day.
Keep It Simple and Intuitive
Use colors, symbols, and minimal text. If someone needs to read instructions to understand the signal, it’s not visual management.
Make It Real-Time
Whenever possible, use visual systems that update in real time – whether manually (hourly updates) or digitally (IoT dashboards).
Standardize and Sustain
Once visuals are working, standardize their use across similar areas and build checks into daily routines to maintain them.

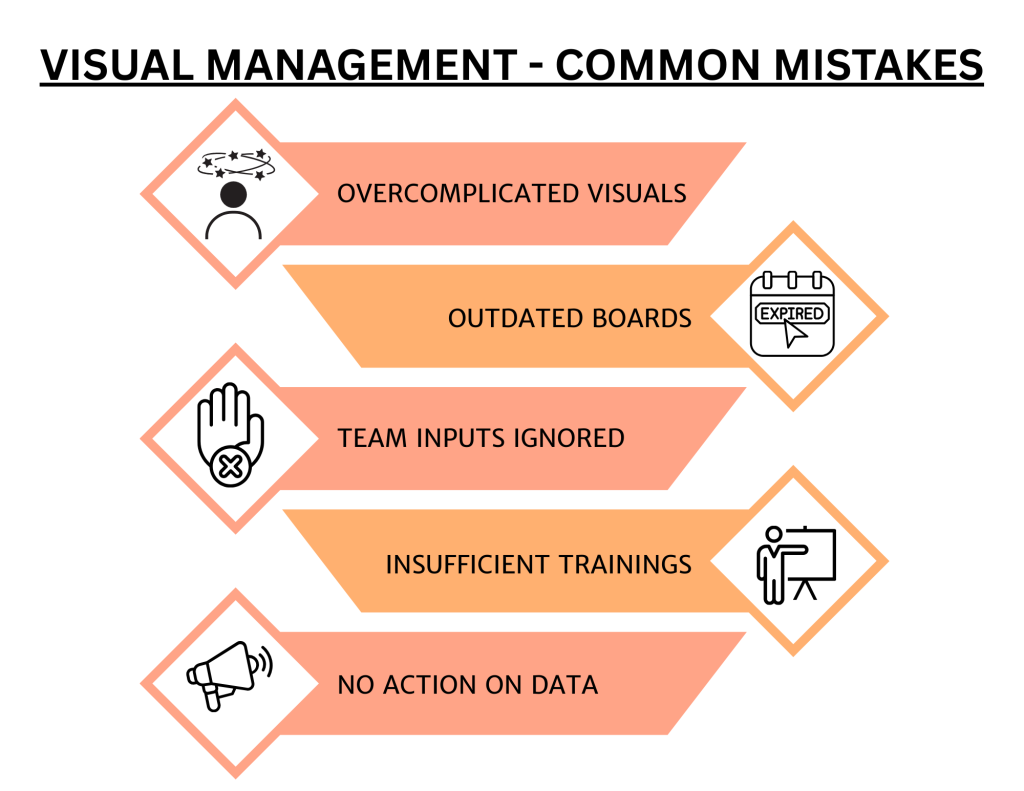

Common Mistakes to Avoid

Overcomplicating visual tools

Sometimes visual management becomes too sophisticated for its own good. Complex dashboards with excessive metrics, multi-layered color codes, or overly technical visuals can overwhelm users instead of helping them. If a team has to be trained extensively just to read a visual board, it’s likely too complicated to be effective.

Letting boards go out of date

Visual tools lose credibility quickly when they show stale or inaccurate information. KPI boards with last month’s data, shadow boards that don’t match current tool layouts, or 5S charts that haven’t been updated in weeks send the message that visuals don’t matter – and neither does the process.

Ignoring team input when designing visuals

Visual management that’s imposed from the top down often misses the nuances of the actual work. When visuals are created without input from operators, they tend to be irrelevant, hard to use, or easily ignored.

Failing to train new hires on how to use and interpret cues

Even the best-designed visuals won’t help if no one knows what they mean. New employees may overlook signs, ignore dashboards, or misinterpret cues – not out of negligence, but because they were never trained on their meaning and use.

Using visuals just for show – without acting on the data

If visual cues show red status, but no one investigates or responds, trust in the system erodes. Over time, visuals become background noise – seen but ignored. Metrics posted only for compliance or audit purposes, without any follow-up, turn visual management into a formality.

Quantifying the Benefits

When visual management is implemented well, manufacturers typically see:

10–30% reduction in downtime due to faster issue response
20–50% improvement in adherence to standard work
Measurable gains in 5S audit scores and workplace organization
Reduction in quality incidents tied to unclear instructions
Improved employee engagement and ownership

Final Thought

A visually managed factory is a self-explaining factory. It empowers every team member, from operator to executive, to see, understand, and act.

At IMEG, we believe that what gets seen gets solved. Visual management is more than a Lean tool – it’s a mindset shift toward transparency, empowerment, and continuous improvement.

Looking to improve visibility and alignment on your shop floor?

Looking to improve visibility and alignment on your shop floor? IMEG helps manufacturers design and implement practical, sustainable visual management systems - from analog boards to digital dashboards. Let’s make your operations more visible, responsive, and resilient.
