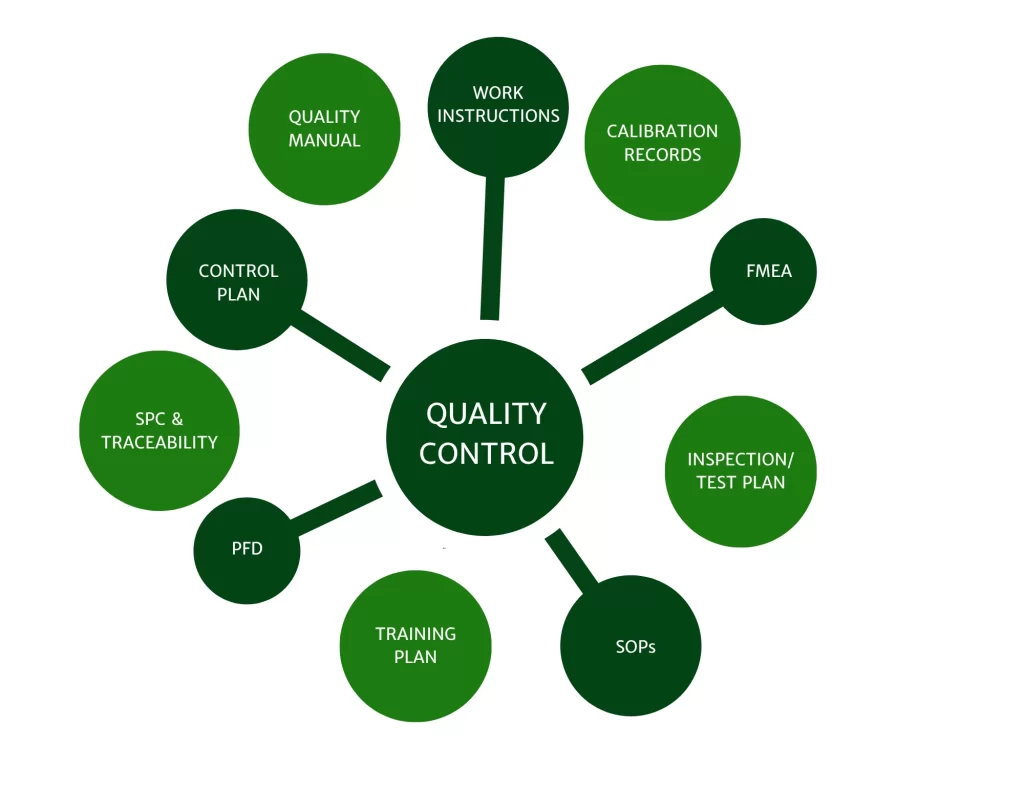

In every well-run manufacturing environment, quality doesn’t start at inspection – it starts with clarity. Clear processes, clear responsibilities, and clear documentation form the backbone of effective quality management.
A Process Flow Diagram is a visual representation of the steps involved in a manufacturing or business process. It illustrates the flow of materials, actions, and decisions from start to finish – typically using standardized symbols for operations, inspections, storage, and transportation.
Think of it as a blueprint for how work gets done – not just the what, but the how and in what sequence.
In manufacturing, PFDs are most commonly used to:
Here’s a step-by-step guide to building a PFD using a tabular format (e.g., Excel):
Establish process boundaries – from raw material receipt or initial fabrication to the final operation like packing or quality release.
Break down the process into distinct steps. Include: Operations (e.g., drilling, welding, assembling), Inspections (e.g., visual check, measurement), Material movements or waiting points (e.g., WIP transfers)
Create a table with clearly
defined columns. Common columns include: Step Number, Process Description, Operation Type, Process Characteristics, Product Characteristics, Reference Documents
List the steps in logical order, following the actual flow of the product. Include loops for rework or off-line inspection if applicable.
Provide brief context where helpful. For example, note if a dimension is safety-critical or if an inspection is required per customer spec.
Walk the PFD on the floor. Engage operators and supervisors to ensure the steps, responsibilities, and characteristics are accurate and complete.
Update the PFD whenever the process changes due to layout updates, engineering changes, or product modifications.

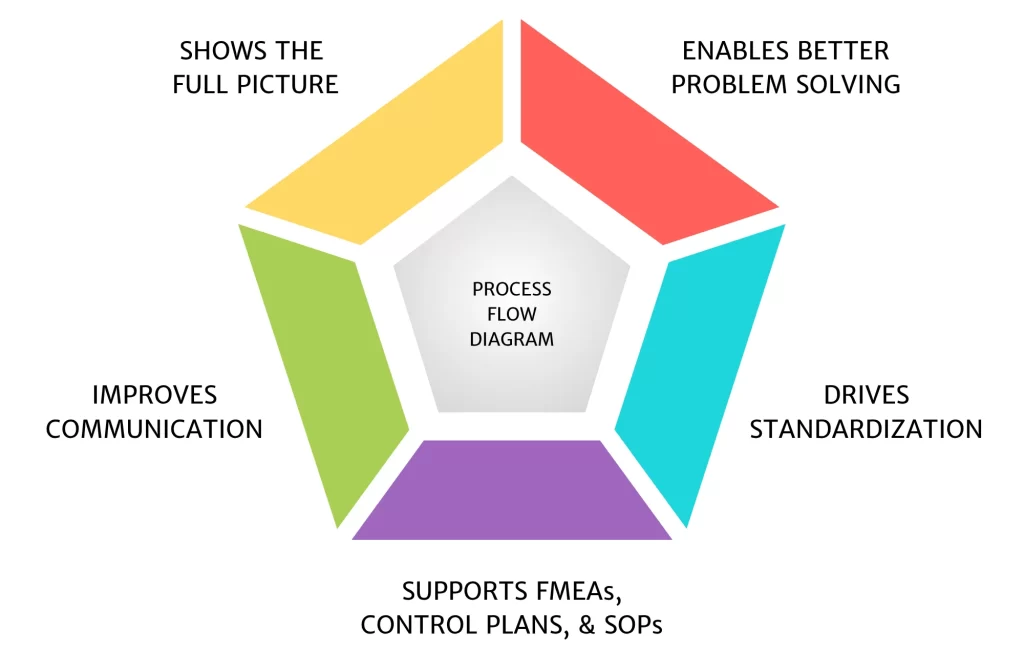

A great PFD is:
At IMEG, we often develop PFDs as the first step in deeper manufacturing analyses. Whether we’re conducting a line balancing study, identifying value stream gaps, or redesigning a facility layout, the process map is our foundation.
We’ve seen how even one overlooked process step, like a manual label inspection or unlogged material transfer, can create quality risks or throughput losses. The PFD helps us (and our clients) catch those gaps early.
Processes exist whether you document them or not. But without a clear map, teams often operate on assumptions. A well-built Process Flow Diagram brings visibility, alignment, and confidence — three things every manufacturing floor needs.
