CELLULAR LAYOUT OPTIMIZATION

PROJECT INCLUDES:

• Plant Layout Development

IMEG was hired by a pump manufacturer to develop and analyze layout options that would promote improvements regarding floor space usage, operator travel distance, and flow of materials.

THE PROBLEM

cellular layout optimization

  • Congested work environment with three distinct workflow operations
  • No clear operator travel paths or work stations
  • Restricting storage methods
  • Non-conducive flow of material

proposed, material, plant, assembly

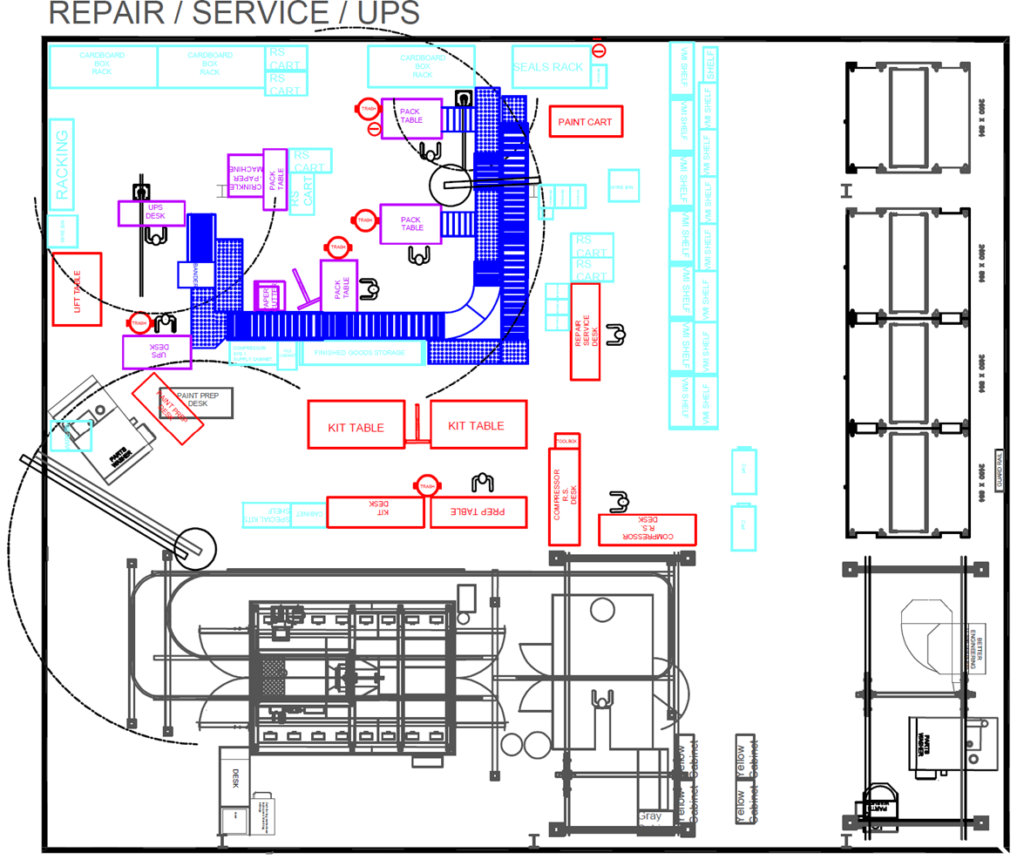

cell layout, assembly layout

THE PLAN

  • Field measure current plant layout and verify with AutoCAD model
  • Develop plant layout options and analyze the travel distance and floor space used
  • Perform WIP calculations to understand how much material is required to store lineside
  • Perform a walk-through of the most optimal layout with the operators

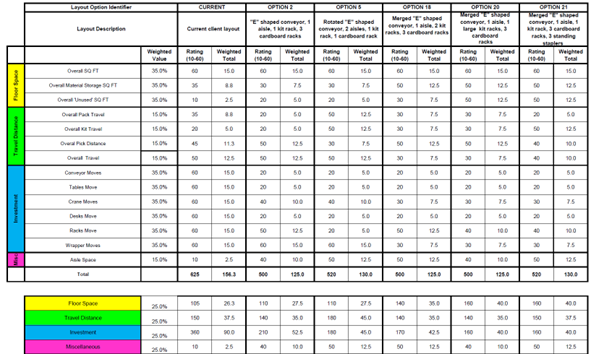

plant assembly analysis

THE RESULTS

  • Developed and analyzed 21 layout options to determine which was the most optimal for the flow of material
  • Current assembly space decreases from 36.5% to 21.5% of the total floor space, allowing an additional of an aisleway for improved material flow for pickers to kitting and packing stations
  • Unused space in the cell from 8.6% to 1.8%
  • Created a visual management system to provide improved organization
  • Proposed storage methods conducive to the calculated WIP quantities
  • Future state inventory quantities for the kits, vanes, and seals increase 11.16%, 13.14%, and 5.65% respectively
  • Designated a larger kit storage rack

plant, assembly, material

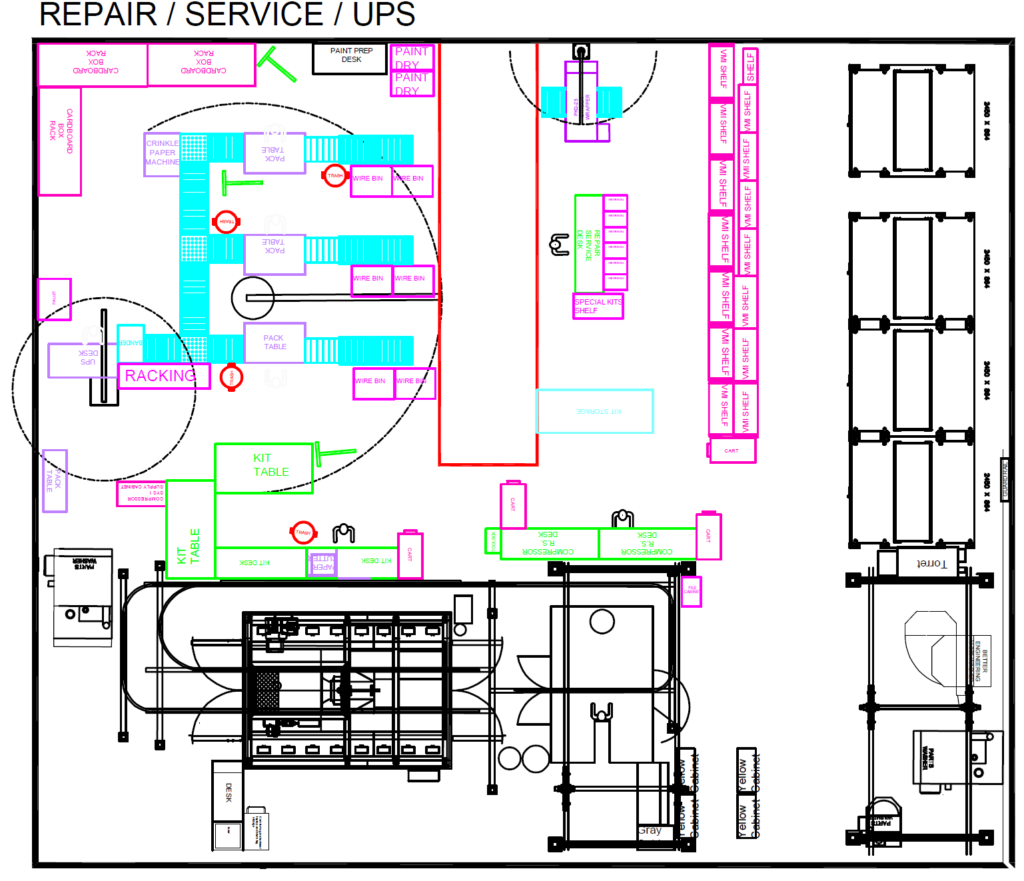

proposed cellular layout

proposed, material, plant, assembly
